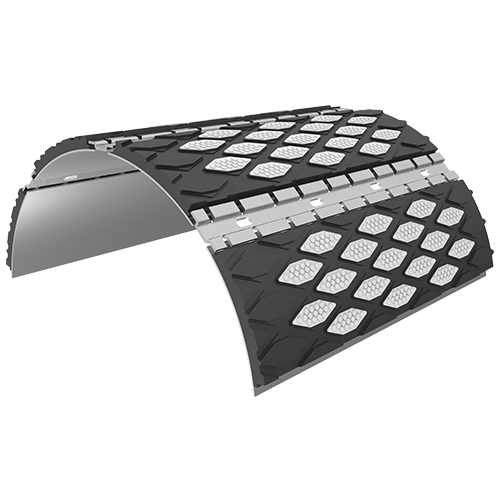

It is suitable for the use of pulley lagging of long-distance high-speed belt conveying equipment, with the strongest anti-slip ability and service life, and prolongs the equipment startup time by reducing the replacement frequency and replacement time of the lagging.
1.Installation is more convenient and faster, and the replacement saves 50% of labor；
2.It will not hurt the non-working surface of the conveyor belt, which is more friendly to the conveyor belt；
3.Provide >40000 hours service life under normal working conditions；
4.It can be used in high belt speed, muddy, ≥ 3000t/h conveying capacity and other working conditions；
5.Safer hot vulcanization bonding process.
| Ceramic Tiles | |
| AlO,Content | 92%,95% |
| Volume Density | >3.5 g/cm3 |
| Tensile strength | 20 Mpa |
| Compressive Strength | 200 Mpa |
| Hardness (Mohs) | >9t |
| Water Absorption | <0.02 |
| Abrasion | <120 mm |
| Rubber | |
| Polymer | NR/SBR |
| Specific Gravity | 1.2+/-0.03 |
| Shore a (hardness ) | 65+/-5 |
| Elongation at break | 400% |
| Tensile strength. | 17 N/mm² |
| Abrasion Loss | <120mm |
| --- | --- |
| Commodity | Thickness.mm | Width.mm | Length.mm |
| Normal Ceramic Lagging | 12 / 15 / 18 / 20 | 500 | Customized |
| Flame Retardant Ceramic Lagging | 12 / 15 / 18 / 20 | 500 | Customized |
