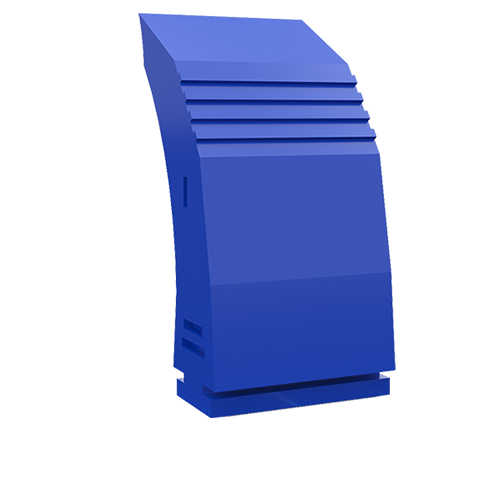

Belt Cleaner for Mud：Solve the cleaning problem of sediment and sticky material on conveyor belt.
Maximum belt speed: ≤ 4.6m/s;
Maximum applicable temperature: 50℃ ;
Minimum applicable temperature: minus 35℃ ;
Maximum belt width: ≤ 3m;
Pulley diameter: 1000mm~1600mm
Grain transportation, coal, cement plants, thermal power plants, quarries.
1. The best sediment cleaning performance, the friction size between the cleaner blade and the conveyor belt reaches 6cm, and at the same time, the flexibility of polyurethane is increased, which can remove the water and fine sand on the surface of the conveyor belt, thus it has the best sediment cleaning performance among similar products.
2. The service life is improved too, and the cemented carbide blade is added, the service life under normal working conditions is more than 7000 hours, which is more than 120% higher than that of the full polyurethane blade of the same size.
3. Stronger impact resistance of stones, strong anti-shock groove design, not afraid of the impact of large stones, can tilt large stones into the blanking tank.
4. It can solve the decrease of cleaning efficiency caused by the uneven conveyor belt. The segmented blade design can automatically adjust the cleaning angle in the uneven area of the conveyor belt. At the same time increases the flexibility of polyurethane. The blade can be closely contact the conveyor belt, improving the cleaning efficiency.
5. The cleaner is made of galvanized or stainless steel with stronger corrosion resistance.
|
Belt width.mm |
Blade width.mm |
Blade quantity |
|
650 |
600 |
3 |
|
800 |
600 |
3 |
|
900 |
800 |
4 |
|
1000 |
800 |
4 |
|
1200 |
1000 |
5 |
|
1400 |
1200 |
6 |
|
1600 |
1400 |
7 |
|
1800 |
1600 |
8 |
|
2000 |
1800 |
9 |
|
2200 |
2000 |
10 |
|
2400 |
2200 |
11 |
|
2800 |
2400 |
12 |
